Accommodation Units

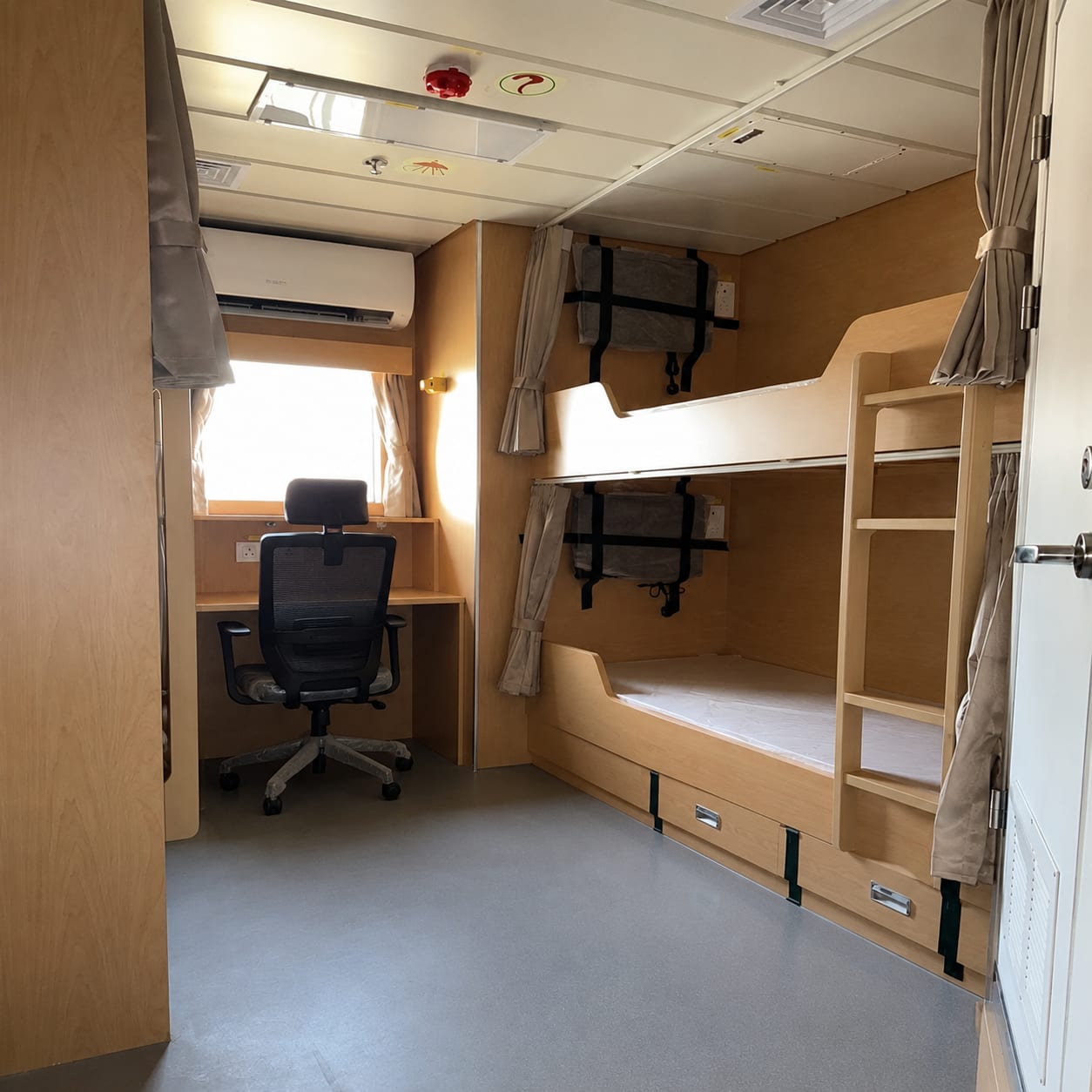

Single-room 20ft and two-room 40ft sleeping modules with optional ensuite and kitchenette.
Modular Workforce Accommodation: Turnkey Mining Camp Solutions
- Scale
- 20-500+ beds
- Modules
- 7 building types
- Delivery
- Turnkey
- Build
- 8-16 wks
Request a Quote
20ft and 40ft ISO-base modules plus 4m-wide custom panel modules. Welded steel frames, insulated sandwich panels, split-system A/C per module. Three fit-out tiers: base, mid, and executive.
NCC 2022, AS/NZS 3000 electrical, AS/NZS 3500 plumbing, AS 3740 waterproofing, AS/NZS 1170.2 Region D cyclonic. International: SG MOM dormitory, Estidama, Mostadam, GSAS, SANS 10400.
Mining camps, construction sites, defence forward bases, and emergency-response compounds across 17 countries. One manufacturer, one production line, one point of accountability.
Overview
Complete turnkey camps from one manufacturer
Modular workforce accommodation is a complete turnkey camp solution built off-site as prefabricated modules and shipped to a remote tenement, where the modules are craned into place and linked into one camp. SCS Global manufactures the full system factory-direct from our Yixing, Jiangsu facility. Camps scale from 20-bed exploration deployments through 500+ bed operational sites, ship into our full mining camp accommodation range and run against the same compliance baseline as every other SCS module. One manufacturer. One production line. One point of accountability for the whole compound.
Specifications
Modular Mining Accommodation Specifications
Three module form factors: 20ft and 40ft ISO-base modules, plus 4m-wide custom panel modules linked into accommodation wings, mess complexes, and amenity blocks. Every module shares the same construction baseline: fully welded steel frame, insulated sandwich panel walls and roof, and split-system air conditioning.
| Specification | Value |
|---|---|
| 20ft module (L x W x H) | 6,058 x 2,438 x 2,591 mm (ISO 668:2020 standard cube) |
| 40ft module (L x W x H) | 12,192 x 2,438 x 2,896 mm (ISO 668:2020 high-cube) |
| 4m-wide custom panel module | 12,000 x 4,200 x 3,000 mm |
| Frame | Fully welded steel (RHS / SHS sections) |
| Wall and roof panel | EPS, polyurethane, or Rockwool insulated sandwich panel |
| Floor | Marine-ply substrate with vinyl, laminate, or heavy-duty finish |
| HVAC | Split-system A/C per module; ducted available for larger footprints |
| Electrical | Region-configured; AU/NZ to AS/NZS 3000 |
| Plumbing readiness | Bottom-of-floor stub-outs for water in, sewer out per AS/NZS 3500 |
| Linkability | Side-by-side and end-to-end for accommodation wings and mess complexes |
| Stackability | 20ft and 40ft ISO modules stackable under ISO 1496-1 |
| Camp lifecycle | 10 to 25 year primary deployment; relocatable for secondary deployments |
Turnkey Delivery
Mining Camp Construction, Planning & Delivery
SCS delivers a turnkey camp in five stages: engineering design, factory build at Yixing, global shipping, on-site crane installation, and commissioning. Camp tiers run from 20 to 50 beds (pilot), 50 to 200 beds (mid-sized exploration or construction), and 200 to 500+ beds (large operational, often two-storey). Bed count drives ablution count at a 1:10 to 1:6 ratio under AS/NZS 3500. Kitchen and mess typically scale to one complex per 50 to 100 beds. SCS operates as a single-supplier camp builder, not a sector aggregator.
Logistics
Global Shipping Advantage
SCS ships modular workforce accommodation from Jiangsu to 17 countries. 20ft and 40ft modules transit under standard freight container handling with CSC plates, sea freight FCL to nominated port, then road or rail to the tenement. 4m-wide custom panel modules ship flat-pack or break-bulk. Common routes include Jiangsu to Port Hedland for the Pilbara, Jiangsu to Mackay for the Bowen Basin, Jiangsu to Jebel Ali for UAE and KSA, and Jiangsu to Singapore for SG dormitory programs. DDP terms available on every route.
Compliance
Regional Compliance
A camp's regulatory scope depends on where it lands. AU and NZ deployments run against NCC 2022, AS/NZS 1170.2 Region D cyclonic, AS/NZS 3000 electrical, AS/NZS 3500 plumbing, AS 3740 waterproofing, and the Mines Safety and Inspection Act 1994 on WA tenements. Singapore adds MOM dormitory standards and BCA PPVC approval. Middle East procurements run against Estidama, Mostadam, and GSAS. Every camp ships against the SCS factory QA process with pre-shipment inspection reports issued per module.
ISO
Bureau Veritas
DNV
Lloyd's Register
BIC
ABS Standards & References
Standards we build to
Every modular camp we deliver is engineered against the applicable regional standards.
AS/NZS 3000:2018 Wiring rules for all electrical installations across the camp. Standards Australia / Standards NZ
AS/NZS 3500 Plumbing and drainage: water supply, sanitary plumbing, heated water. Standards Australia / Standards NZ
AS/NZS 1170.2 Structural design actions: wind actions. Region D cyclone rating for Pilbara, North QLD, NT coast. Standards Australia / Standards NZ
Camp Components
Camp Components
A turnkey camp includes seven building types, all manufactured on the same modular line at Yixing. Module count scales with bed count and roster pattern.
Ablution Blocks
Multi-cubicle shower and toilet blocks plumbed to AS/NZS 3500 at operator ratios.
Kitchen & Mess
Containerised commercial kitchens and mess halls for crews of 50 to 2,000.
Laundry Containers
Industrial washers and dryers sized to camp population. Grey-water separation at factory.
Guard Houses
Gatehouse and security modules for camp access control.
Recreation & First Aid
Gym, lounge, TV, and clinic modules for crew welfare on long-stay rotations.
Crib Rooms
Shift-break lunch rooms with kitchenette, seating, and A/C.
Applications
Applications and Deployment
Modular workforce accommodation deploys wherever a complete workforce compound is needed on a remote tenement.
Mining & Resources
FIFO camps for iron-ore, copper, gold, and bauxite operations. 20-bed exploration through 500+ bed multi-wing operations.
Oil, Gas & Energy
Pipeline projects, oilfield camps, and LNG construction. Region D cyclonic for North West Shelf and Browse Basin.
Construction & Infrastructure
Long-duration build camps and civil infrastructure projects. Flat-pack for transport-efficient mobilisation.
Military & Defence
Forward operating bases, emergency-response compounds, and temporary worker housing. Rapid-deploy and relocatable.
Tell us the bed count, deployment region, and compliance scope. We design and quote the full camp.
Request a Quote
Engineering Resources
Download technical documentation
Spec sheets, camp layout diagrams, and module CAD drawings for engineering review.
Camp Components
Every module from one manufacturer
Each component of a turnkey camp is a separate product in the SCS range, built at the same Yixing factory.
Mining Housing Units
Single, twin-share, and ensuite sleeping units for FIFO and remote-site accommodation.
mining housing units
Ablution Blocks
Multi-cubicle shower and toilet blocks pre-plumbed to operator ratios.
ablution blocks
Kitchen & Mess Buildings
Containerised commercial kitchens and mess halls for crews of 50 to 2,000.
camp kitchens
Guard Houses
Containerised gatehouses and access-control buildings for camp entries and site security.
portable guard houses
Flat Pack Buildings
Flat pack accommodation kits that ship in crates and assemble by hand, for transport-efficient remote camps.
flat pack accommodationFAQ
Frequently Asked Questions
Three questions procurement and operations ask most often about modular mining camps.
How long does it take to build a modular mining camp?
Build runs 8 to 16 weeks ex-Yixing depending on camp size, fit-out specification, and regional compliance scope. A 50-bed pilot camp sits at the short end; a 200-bed multi-amenity camp with Region D cyclonic engineering sits at the long end. Shipping and on-site install add another 4 to 8 weeks.
How many units does a typical mining camp need?
A 100-bed FIFO camp typically runs 20 to 25 sleeping modules, two ablution blocks, one kitchen and mess complex, one or two laundry containers, one guard house, one recreation room, and one first aid station. Module count scales linearly with bed count.
Can a modular mining camp be relocated?
Yes. ISO-base 20ft and 40ft modules ship as standard freight containers between sites under CSC plate. 4m-wide custom panel modules disassemble to flat-pack for road transport. Multi-mobilisation duty cycles of 10 to 25 years on primary deployment plus secondary relocations are standard.
