Crash Frames
Standard and custom designs for impact protection during crane operations.
DNV 2.7-1 Container – Offshore Cargo Carrying Units
- Sizes
- 10ft / 20ft / Half-Height
- Certification
- DNV 2.7-1 / 2.7-2
- MGW
- 11,500–20,000 kg
- Steel
- Q345 / S355
Request a Quote
10ft, 20ft, and 20ft half-height. Q345/S355 structural steel with corten shell, SA 2.5 blast preparation, epoxy primer, and marine topcoat. Design temperature -20°C to -40°C. Certified pad-eyes, forklift pockets, corner castings, heavy-duty steel flooring.
DNVGL-ST-0009 (DNV 2.7-1) structural certification, EN 12079 European harmonised standard, and CSC safety approval for international transport. Buyer's choice of classification society: DNV, LR, BV, or ABS type approval.
Offshore crane lifting between supply vessels and fixed or floating installations. Platform supply, FPSO operations, subsea equipment staging, marine construction, and offshore wind.
Overview
Certified offshore cargo carrying units, factory-direct
SCS Global manufactures DNV 2.7-1 cargo containers for offshore crane lifting on platforms, FPSOs, and supply vessels. Available in 10ft, 20ft, and half-height configurations, these certified offshore freight containers are built factory-direct with full classification society certification and engineering documentation. SCS builds them as part of our range of DNV offshore containers A DNV 2.7-1 container is classified as a cargo carrying unit (CCU): a certified offshore freight container engineered for dynamic crane lifting. Unlike standard ISO shipping containers designed for static stacking, offshore CCUs carry crash frames to absorb impact loads, certified pad-eyes for four-leg sling attachment, and marine-grade coating systems rated for continuous saltwater exposure.
Specifications
Certified Offshore Container Specifications
SCS DNV 2.7-1 offshore containers are built to Q345/S355 structural steel with corten shell, SA 2.5 blast preparation, epoxy primer, and marine topcoat, meeting the offshore container standard required by DNVGL-ST-0009. The three standard configurations cover the majority of platform supply, deck cargo, and equipment transfer operations. Custom dimensions and MGW ratings up to 25,000 kg are available.
| Specification | Value |
|---|---|
| Available sizes | 10ft, 20ft, 20ft half-height; custom to 25,000 kg MGW |
| 10ft external dimensions (L x W x H) | 2,991 x 2,438 x 2,591 mm |
| 10ft tare / payload / MGW | 1,960 kg / 9,540 kg / 11,500 kg |
| 20ft external dimensions (L x W x H) | 6,058 x 2,438 x 2,591 mm |
| 20ft tare / payload / MGW | 2,970 kg / 13,530 kg / 16,500 kg |
| Half-height external dimensions (L x W x H) | 6,058 x 2,438 x 1,400 mm |
| Half-height tare / MGW | ~2,800 kg / 20,000 kg |
| Shell material | Corten steel |
| Structural steel grade | Q345 / S355 |
| Coating system | SA 2.5 blast + epoxy primer + marine topcoat |
| Design temperature | -20°C / -40°C |
| Door type | Heavy-duty steel doors, lockable; double-door and side-opening options |
| Floor | Heavy-duty steel, anti-slip surface |
| Lifting | 4-leg certified sling + shackles, DNV-approved pad-eyes, forklift pockets |
| Stackable | Yes (ISO corner castings) |
Sizes
Standard Offshore Cargo Container Sizes

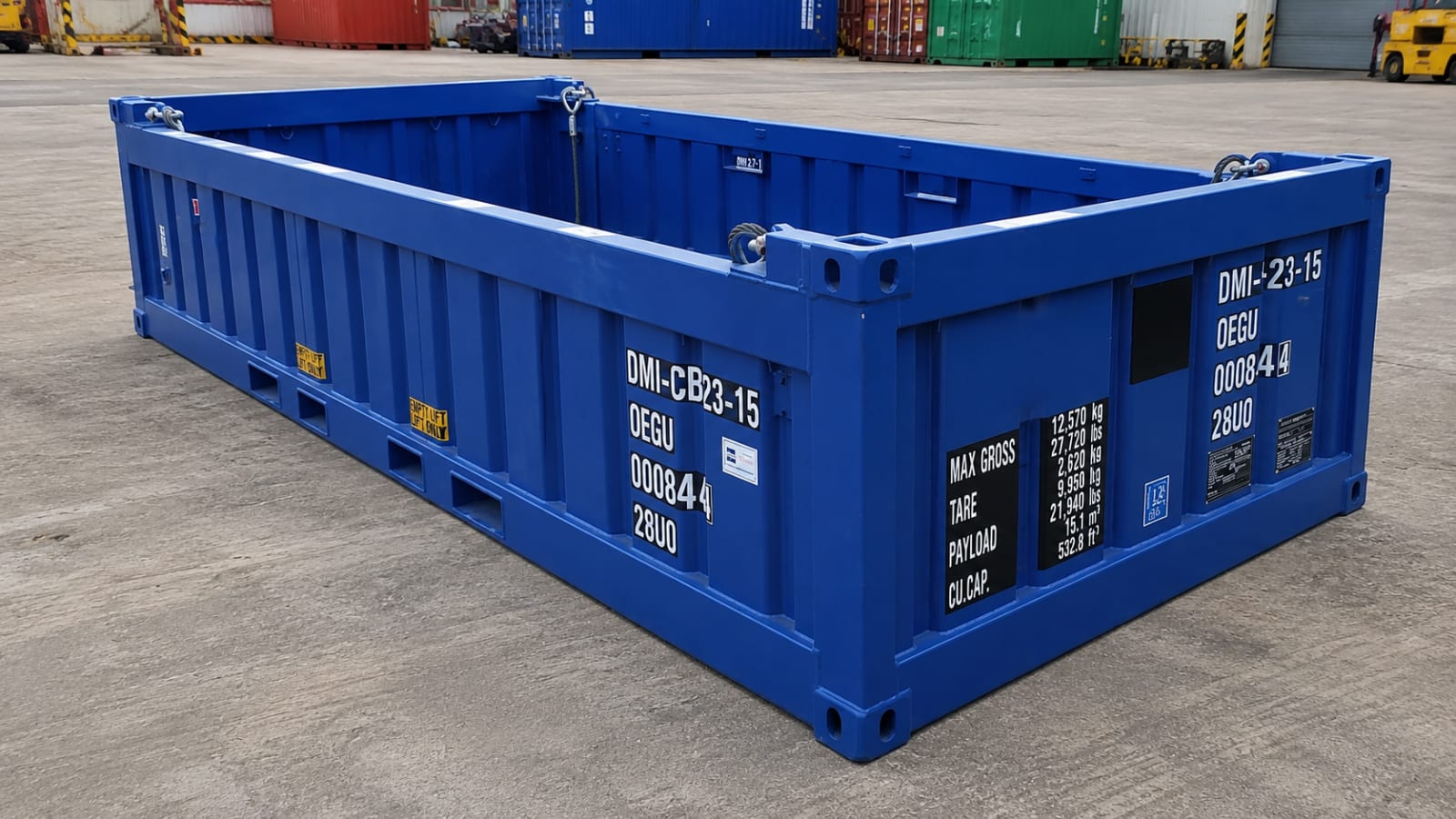

Offshore cargo containers come in three standard DNV-certified configurations: 10ft (MGW 11,500 kg), 20ft (MGW 16,500 kg), and 20ft half-height (MGW 20,000 kg). The 10ft suits general freight, tools, and equipment on space-constrained platforms; the 20ft handles drilling equipment, spares, and bulk consumables. The 1,400 mm half-height stores pipe, tubulars, and bulk cargo where full-height boxes waste vertical space, with open-top and flush-panel options for crane loading from above. Custom dimensions and MGW up to 25,000 kg are available.
Service Units
DNV 2.7-2 Portable Offshore Units
DNV 2.7-2 is the certification standard for Portable Offshore Units: containers with habitability, electrical, HVAC, or operational requirements beyond basic freight. The freight standard (2.7-1) certifies the container structure: material, welding, and structural load testing. The service standard (2.7-2) covers the complete fitted module, including workshops, control rooms, laboratories, and accommodation with electrical, ventilation, and fire protection. A plain cargo container needs only 2.7-1; any electrical, HVAC, or habitable fit-out requires the added 2.7-2 scope. SCS builds to both standards from one facility with dual-standard documentation.
Compliance
Container Certification and Type Approval
Offshore cargo containers carry DNVGL-ST-0009 structural certification and EN 12079 European harmonised standard compliance, with CSC safety approval for international transport. DNV container certification requires design review by a classification society, material traceability through mill certificates, qualified welding procedures (WPS/PQR), MPI and NDT inspection on all critical welds, prototype load testing, sling certification, dimensional inspection, and DFT coating inspection. Every DNV 2.7-1 container carries a certification plate issued by the reviewing classification society. SCS offers buyer's choice of classification society: DNV, BV type approval through Bureau Veritas, LR type approval from Lloyd's Register, ABS, SGS, or Intertek.
ISO
Bureau Veritas
DNV
Lloyd's Register
BIC
ABS Standards & References
Standards we build to
Every cargo carrying unit we manufacture is engineered against the standards below. Click through to the source authority for the full text and current revision.
Configuration Options
Standard and Custom Configurations
SCS manufactures offshore cargo containers with standard and custom configurations, built on the same line against the same DNV testing regime.
Pad-Eye Layouts
Custom configurations for specific crane and lifting requirements.
High Cube Height
Increased internal height for oversized cargo.
Removable Roof / Open Top
Top-loading cargo via crane, including offshore open-top variants for top-access loading.
Door Configurations
Single-leaf, double-leaf, and side-opening options.
Shelving, Racking & Electrical
Internal fit-out for tools, equipment, and organised storage, plus lighting and electrical installations.
DG-Certified Units
Rated for dangerous goods storage and transport.
Custom Paint
RAL colour coding to operator specification (standard RAL 5013 Cobalt Blue and RAL 1023 Traffic Yellow).
Applications
Offshore Cargo Container Applications
DNV-certified cargo containers serve operators across oil and gas, marine and offshore construction, defence marine logistics, and remote resource projects requiring crane-rated containerised freight. DNV certification is required for all crane lifting between vessel and platform.
Oil, Gas & Energy
Deck cargo transfer between supply vessels and fixed or floating installations, equipment and spares storage on production platforms, and freight handling on FPSOs.
Construction & Infrastructure
Freight handling during offshore wind farm construction, pipeline installation, and decommissioning campaigns where dynamic crane lifting is standard practice.
Military & Defence
Certified cargo containers for naval supply, defence marine logistics, and government offshore programmes requiring DNV 2.7-1 crane-rated freight.
Mining & Resources
Mine sites and remote resource operations specify crane-rated containers where dynamic lifting between transport and site is standard practice.
Tell us the size, MGW, and classification society. We quote factory-direct with buyer's choice of certification body.
Request a Quote
Engineering Resources
Download technical documentation
Spec sheets, DNV compliance summaries, and CAD drawings for engineering review. Every engineering document published here has a crawlable HTML equivalent elsewhere on the page.
PDFOn request
DNV Cargo Container Specification Sheet
Per-variant technical specifications for 10ft, 20ft, and half-height offshore cargo containers.
DownloadPDFOn request
DNV Compliance Certificate Summary
Classification society certification documentation.
DownloadCADOn request
Cargo Container CAD Drawings
Plan, elevation, and section drawings for engineering review.
DownloadRelated Products
Explore the offshore range
Sister products in the SCS DNV offshore range. Every unit is built on the same Jiangsu line, against the same DNV testing regime.
Offshore Workshops
DNV 2.7-2 certified workshop containers for maintenance, repair, and operations on offshore platforms and vessels.
offshore workshops
Offshore Baskets
DNV 2.7-1 certified cargo baskets and personnel transfer baskets for offshore crane lifting operations.
offshore baskets
Hazardous Area Modules
ATEX and IECEx rated offshore containers for hazardous zone operations on platforms and FPSOs.
hazardous area modulesFAQ
Frequently Asked Questions
Three questions procurement and engineering ask most often about DNV cargo containers.
What Is a DNV 2.7-1 Container?
Containers certified under DNV 2.7-1 (DNVGL-ST-0009) are offshore freight units rated for dynamic crane lifting on platforms, FPSOs, and supply vessels. Certification requires design review by a classification society, material traceability through mill certificates, qualified welding to WPS/PQR standards, and prototype load testing.
What Is the Difference Between a DNV Container and a Standard Shipping Container?
DNV offshore containers carry crash frames for impact protection, classification-society-certified pad-eyes for crane lifting, and marine-grade coating systems for saltwater environments. Standard ISO shipping containers are designed for static stacking and intermodal transport. They are not rated for dynamic offshore crane lifting and do not carry DNV or EN 12079 certification.
What Are the Standard DNV Cargo Container Sizes?
Standard offshore container sizes are 10ft (2,991 x 2,438 x 2,591 mm, MGW 11,500 kg) and 20ft (6,058 x 2,438 x 2,591 mm, MGW 16,500 kg). Half-height 20ft containers (1,400 mm external height, MGW 20,000 kg) are available for pipe, tubular, and bulk cargo storage. Custom dimensions and ratings up to 25,000 kg gross weight are available.
